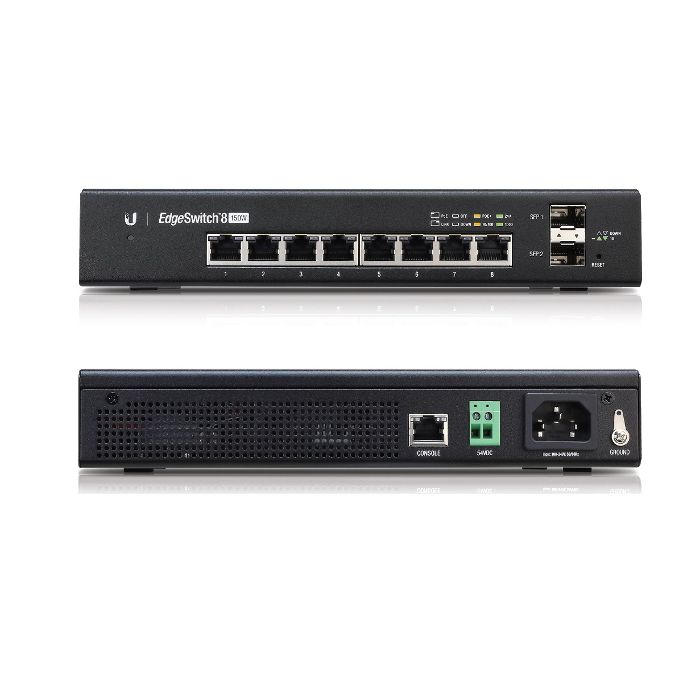

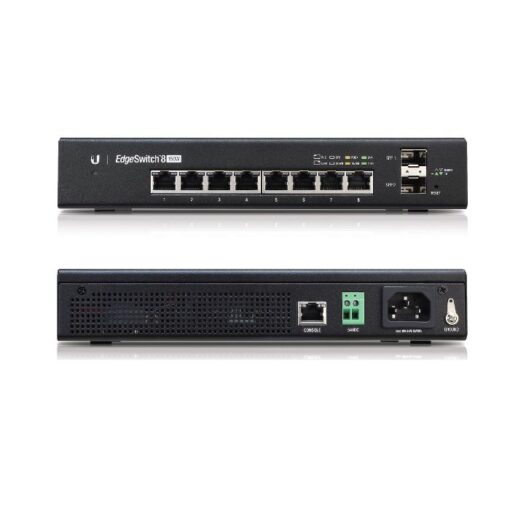

UBIQUITI EDGESWITCH (ES-8-150W)

    990.00 AED

    Category: Brand:

      UBNT-ES-8-150W – EdgeSwitch 8 (150W Model)

      Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. By defaule EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

      The device can be powered with 110-240V AC or 42-56V DC

      Main Features

      • (8) Gigabit RJ45 Ports
      • (2) SFP Ports
      • (1) Serial Console Port
      • Non-Blocking Throughput: 10 Gbps
      • Switching Capacity: 20 Gbps
      • Forwarding Rate: 14.88 Mpps
      • Maximum Power Consumption: 150W
      • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
      • Wallmountable with Mount Brackets (Included)
      • Desktop-Mountable (Do not physically stack the ES–8-150W.)
      • DC Input Option (Redundant or Stand-Alone)



      Technical Specification



      Dimensions 204 x 43 x 235 mm
      Weight 1.8 kg
      Total Non-Blocking Throughput 10Gbps
      Max. Power Consumption 150W
      Power Method 100-240VAC/50-60Hz, DC 42-56V
      Power Supply AC/DC, Internal, 150W DC
      LEDs Per Port
      RJ45 Data Ports
      SFP Data Ports      		 PoE, Speed/Link/Activity
      Speed/Link/Activity
      Networking Interfaces 8x 10/100/1000Mbps RJ45 Ethernet Ports
      2x 1Gbps SFP Ethernet Ports
      Management Interface Ethernet In/Out of Band
      Certifications CE, FCC, IC
      Casing Desktop, Wallmountable with Mount Brackets (Included)
      ESD/EMP Protection Air: ±24kV, Contact: ±24kV
      Operating Temperature -5 to 40°C
      Operating Humidity 5 to 95% Noncondensing
      Shock and Vibration ETSI300-019-1.4 Standard
      PoE Per Port
      PoE Interfaces POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
      24VDC Passive PoE (Pins 4,5+,7,8-)
      Max. PoE+ Wattage per Port by PSE 34.2W
      Voltage Range 802.3at Mode 50-57V
      Max. Passive PoE Wattage per Port 17W
      24V Passive PoE Voltage Range 20-27V
      Weight 2 kg
